Specification

Dimensions

Next
  • kia-carnival-dimensions-w-front kia-carnival-dimensions-t-front kia-carnival-dimensions-m-front

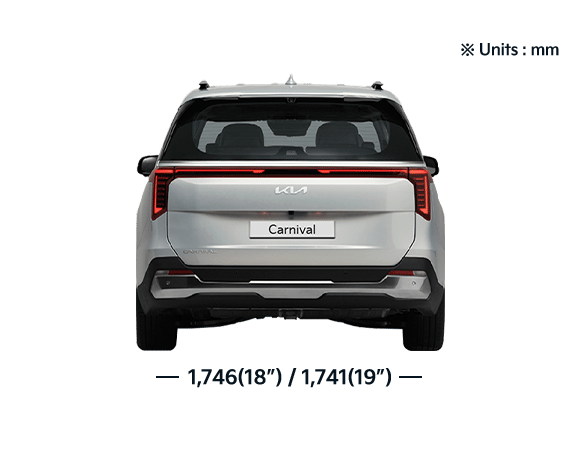

  • kia-carnival-dimensions-t-back kia-carnival-dimensions-m-back
  • kia-carnival-dimensions-w-side kia-carnival-dimensions-t-side kia-carnival-dimensions-m-side
Prev
Engine
table fix area
Type
Fuel Injection System
Displacement (cc)
Bore x Stroke (mm)
Compression Ratio
Maximum Horsepower (ps/rpm)
Maximum Torque (Nm/rpm)
HEV CRDi
TURBO DOHC
GDI (Gasoline Direct Injection) CRDi (Common Rail Direct Injection)
1,598 2,151
75.6 x 89.0 83.0 x 99.4
10.5 16.0
180 @ 5,500 202 @3,800
265.0 @ 1,500~4,500 440 @ 1,750~2,750
Transmission
table fix area
Type
DriveType
HEV CRDi
6-speed Automatic 8-speed Automatic
2WD 2WD
Electric Power
table fix area
Type
Hybrid System Performance (combined) - Max Power (ps)
Hybrid System Performance (combined) - Max Torque (Nm)
HSG - Type
HSG - Max Power (ps)
HSG - Max Torque (Nm)
Electric Motor - Type
Electric Motor - Max Power (ps/rpm)
Electric Motor - Max Torque (Nm/rpm)
Hybrid Battery System - Type
Hybrid Battery System - Voltage (V)
Hybrid Battery System - Capacity (Ah)
Hybrid Battery System - Energy (kWh)
Hybrid Battery System - Power (kW)
Hybrid Battery System - Weight (kg)
HEV CRDi
TMED -
245.0 -
366.8 -
Permanent Magnet Synchronous Motor -
17.70 -
43.20 -
Permanent Magnet Synchronous Motor -
73.4 @ 1,700~2,600 -
304.0 @ 0~1,600 -
Lithum-Ion Battery -
270 -
5.5 -
1.49 -
64 (discharge) / 53 (charge) -
42.5 -
Transmission
table fix area
Type
DriveType
HEV CRDi
6-speed Automatic 8-speed Automatic
2WD 2WD
Steering
table fix area
Type : Motor Driven Power Steering
Manual Tilt & Telescopic
HEV CRDi
GL (8-SEATER) GLS (7-SEATER) GL (8-SEATER) GLS (7-SEATER)
● ●
● ●
Tyres and Wheels
table fix area
Tyre Size
Wheel Size
Spare Wheel & Tyre
HEV CRDi
GL (8-SEATER) GLS (7-SEATER) GL (8-SEATER) GLS (7-SEATER)
235/60R18 235/55R19 235/60R18 235/55R19
7.0J x 18" Alloy 7.5J x 19" Alloy 7.0J x 18" Alloy 7.5J x 19" Alloy
Temporary Mobility Kit (TMK) Alloy
Exterior
table fix area
LED Head Lamps
Rear Combination Lamps
Fog Lamp (Front)
Fog Lamp (Rear)
Dual Sunroof
Auto Light Control
Daytime Running Light (DRL)
Position Lamp
High Mounted Stop Lamp (HMSL)
Rear Spoiler
Roof Rack
Power Side Mirror
HEV CRDi
GL (8-SEATER) GLS (7-SEATER) GL (8-SEATER) GLS (7-SEATER)
MFR 3 CELL 4 CUBE PROJECTION MFR 3 CELL 4 CUBE PROJECTION
BULB LED BULB LED
- LED - LED
- LED - LED
- ● - ●
● ●
LED LED
LED LED
LED LED
● ●
● ●
● ●
Interior
table fix area
Power Seat
Lumbar Support (Driver) : Power
2nd Relaxion Seat
Leg Support (Rear)
Heated Seat 3-step Button (Front)
Ventilated Seat (Front)
Upholstery
Integrated Display 12.3"TFT LCD (CLU)+ 12.3"TFT LCD+ Rheostat
Rear View Mirror
Air Conditioning (Front & Rear)
Walk-in Device (Rear)
Rear Door Curtain
Rear Quarter Curtain
HEV CRDi
GL (8-SEATER) GLS (7-SEATER) GL (8-SEATER) GLS (7-SEATER)
- Driver (Memory) & Passenger (Power) - Driver (Memory) & Passenger (Power)
- 4-way - 4-way
- - - -
- - - -
- ● - ●
- ● - ●
Cloth Artificial Leather Cloth Artificial Leather
● ●
Electric Chromic Mirror (ECM) Digital Center Mirror (DCM) Electric Chromic Mirror (ECM) Digital Center Mirror (DCM)
Auto Auto Manual Auto
● ●
● ●
● ●
Multimedia
table fix area
12.3" Infotainment & Navigation System
Audio Remote Control
Bluetooth with Voice Recognition
Speaker Brand - BOSE Premium Sound System
Tweeter + Ext Amplifier + Center (Front) + Surround Sound
Wireless Charger (Phone)
USB Charger - Front Tray (1 Port)
USB Charger - Seat (1 Port)
USB Charger - Luggage Side (1 Port)
HEV CRDi
GL (8-SEATER) GLS (7-SEATER) GL (8-SEATER) GLS (7-SEATER)
● ●
● ●
● ●
- ● - ●
- ● - ●
● ●
● ●
● ●
● ●
Convenience
table fix area
Smart key (FOB) & Button Start
Power Sliding Door
Power Tailgate
Smart Cruise Control with STOP & GO
Drive Mode Select
Paddle Shifter
Spot Lamp
Rain Sensor
Passenger Talk & Passenger View Mode
Head-up Display (HUD)
HEV CRDi
GL (8-SEATER) GLS (7-SEATER) GL (8-SEATER) GLS (7-SEATER)
● ●
● ●
● ●
● ●
● ●
● ●
● ●
- ● - ●
- -
- -
Safety
table fix area
Driver's & Passenger's Airbags
Front, Thorax & Pelvis + Curtain Airbags
Knee Airbag (Driver)
Child Lock (Manual)
E-shift for SBW
Electric Parking Brake (EPB) with Autohold
Rear Occupant Alert (without Sensor)
Immobilizer
Manual Speed Limit Assist (MSLA)
Anti-lock Brake System (ABS)
Electronic Stablility Control (ESC)
Hill-start Assist Control (HAC)
Parking Collision-Avoidance Assist (PCA) - Reverse
Trailer Stability Assist (TSA)
Surround View Monitor (SVM)
Blind-Spot View Monitor (BVM)
Blind-Spot Collision-Avoidance Assist (BCA)
Parking Distance Warning (PDW) - FWD/SIDE/REVERSE
Lane Keeping Assist (LKA) - Line/Road-Edge
Lane Following Assist (LFA)
Forward Collision Avoidance Assist (FCA)
FCA - Junction Turning (FCA-JT)
FCA - Junction Crossing (FCA-JC)
FCA - Lane-change Oncoming (FCA-LO)
FCA - Lane-change Side (FCA-LS)
FCA - with Evasive Steering Assist (FCA w/ESA)
HEV CRDi
GL (8-SEATER) GLS (7-SEATER) GL (8-SEATER) GLS (7-SEATER)
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
- ● - ●
- ● - ●
- ● - ●
- ● - ●
●  :  Standard          -  :  Not Available

Wheel

Next

  • 18" Alloy wheel

    18" Alloy wheel

  • 19" Alloy wheel (Diesel)

    19" Alloy wheel (Diesel)

  • 19" Alloy wheel (Hybrid)

    19" Alloy wheel (Hybrid)
Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
