Specification

Dimensions

Next
  • kia-carens-22my-dimensions-list-01-w kia-carens-22my-dimensions-list-01-t kia-carens-22my-dimensions-list-01-m
  • kia-carens-22my-dimensions-list-02-t kia-carens-22my-dimensions-list-02-m
  • kia-carens-22my-dimensions-list-03-w kia-carens-22my-dimensions-list-03-t kia-carens-22my-dimensions-list-03-m
Prev

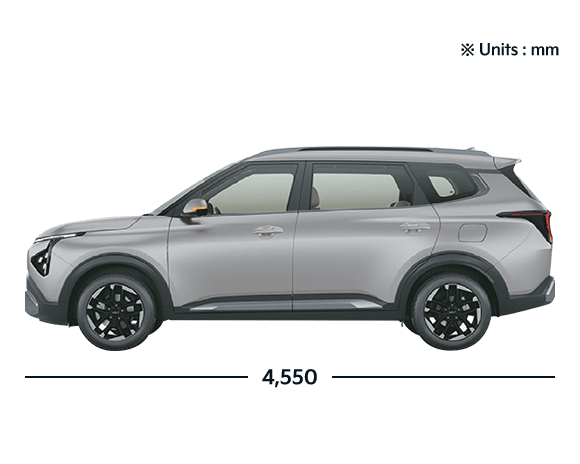

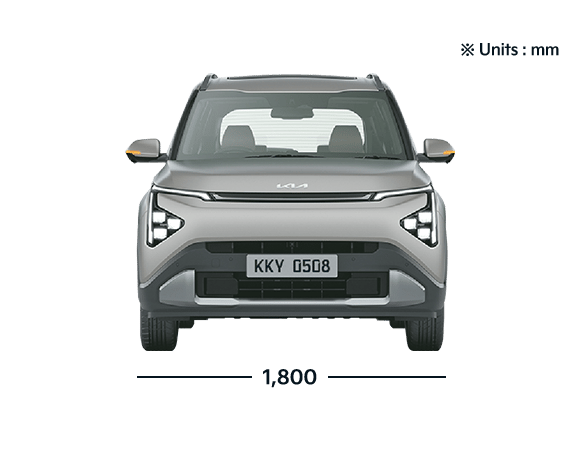

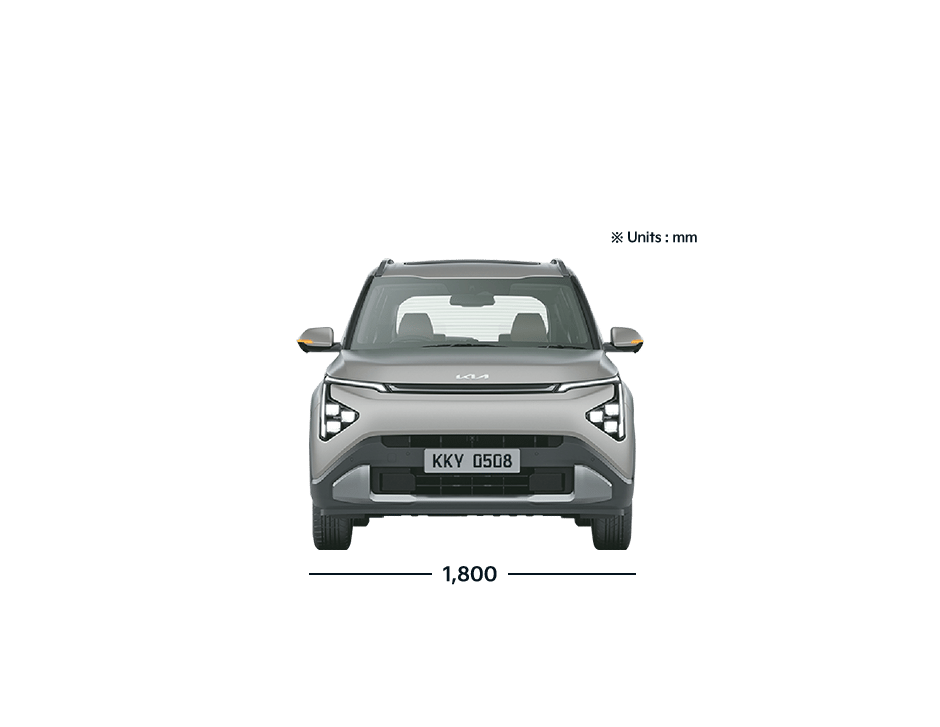

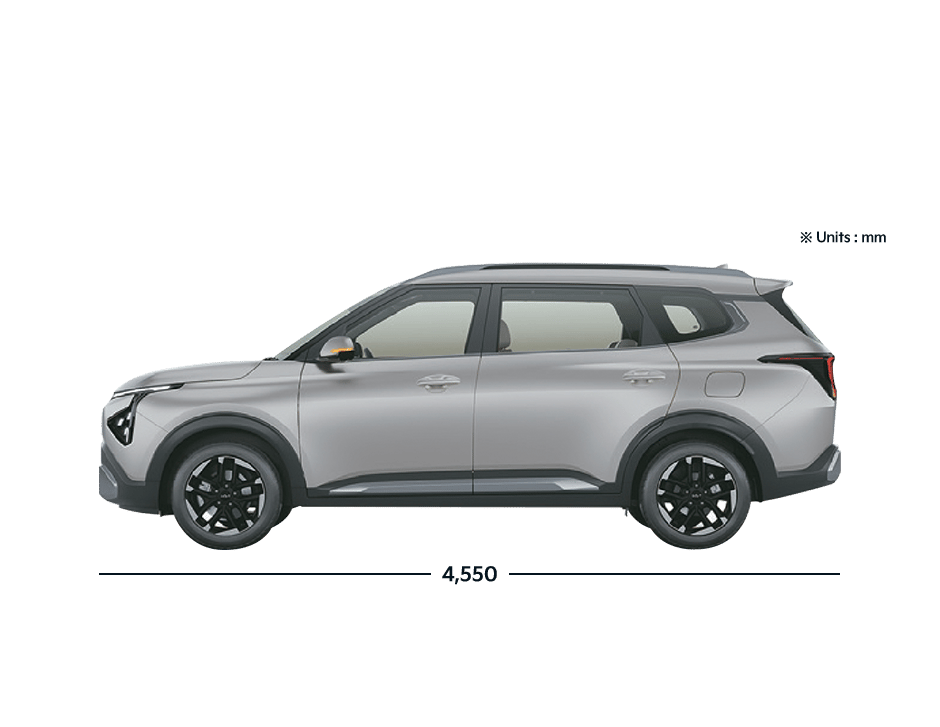

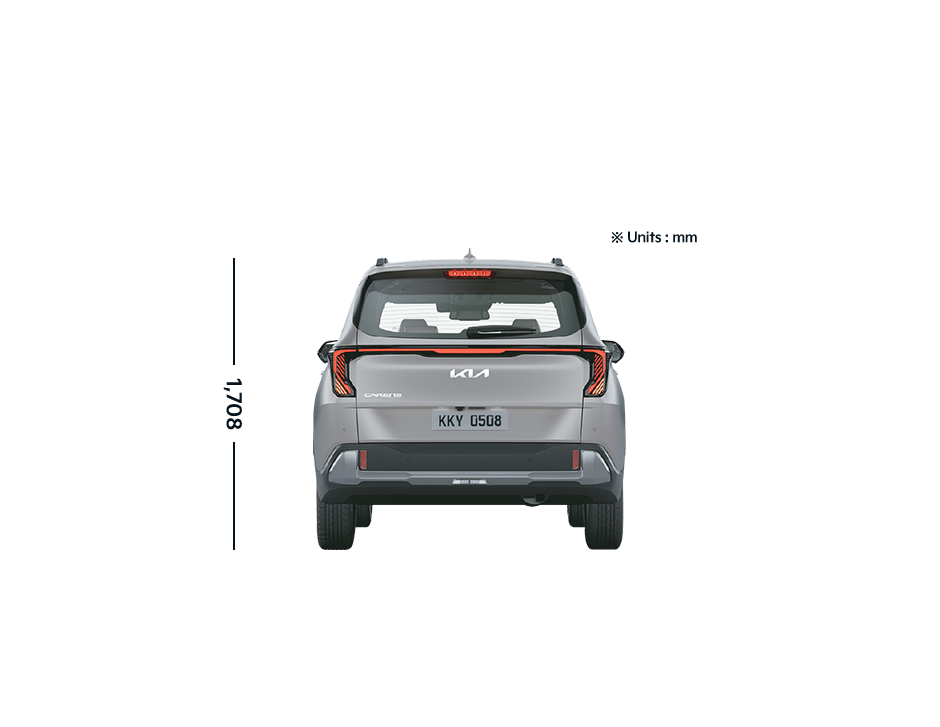

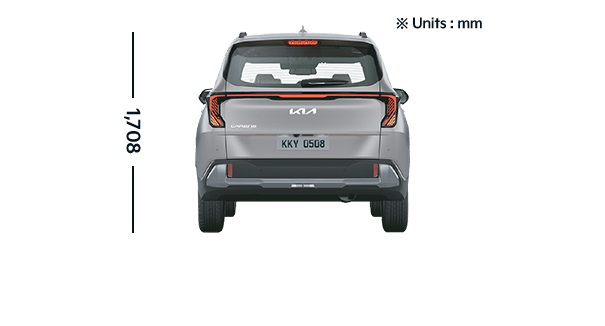

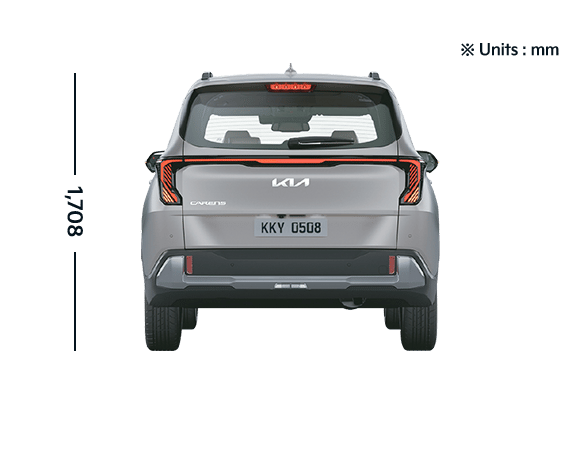

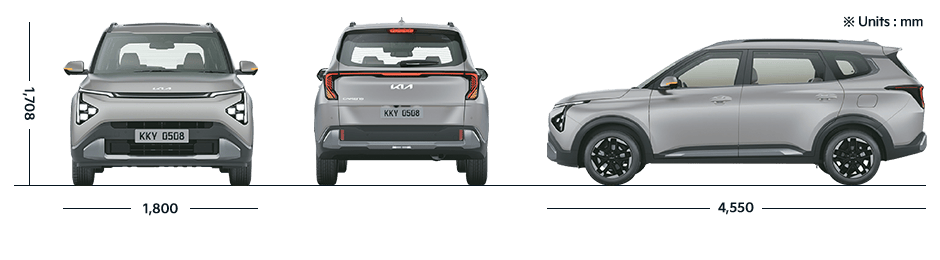

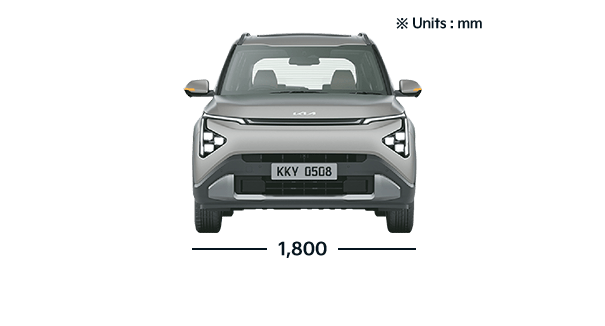

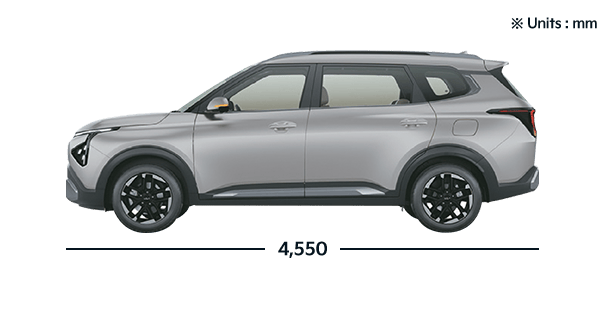

Dimensions (mm)
table fix area
Car
Overall length
Overall width
Overall height
Wheelbase
Carens
4,540
1,800
1,708
2,780
Engine
table fix area
Type
Valve System
Fuel Injection System
Displacement (cc)
Bore x Stroke (mm)
Compression Ratio
Maximum Horsepower
(ps/rpm)
Maximum Torque (Nm/rpm)
Fuel Tank Capacity
Diesel Gasoline
1.5L CRDi VGT Diesel Smartstream G1.5 Petrol
DOHC (16V Hydraulic Lash Adjuster) D-CVVT (16V Hydraulic Lash Adjuster)
CRDi MPI (Multi Point Injection)
1,493 1,497
75.0 x 84.5 75.6 x 83.4
16.0 11.0
115 / 4,000 115 / 6,300
250 / 1,500~2,750 143.8 / 4,500
45L
Transmission
table fix area
Type
DriveType
Diesel Gasoline
6-speed Automatic
2WD
Steering
table fix area
Type :
Motor Driven Power Steering
Manual Tilt & Telescopic
G GL GLS
●
●
Braking System
table fix area
Brake Type (Front / Rear)
G GL GLS
Ventilated Discs / Solid Discs
Suspension
table fix area
Suspension Type
(Front / Rear)
G GL GLS
McPherson Strut Type / Coupled Torsion Beam Axle (CTBA)
Tyres and Wheels
table fix area
Wheel Type - 16"
Tyre Size
Wheel Size
Spare Wheel & Tyre
G GL GLS
Steel Alloy
205/65R16
6.0J x 16"
Steel
Exterior
table fix area
Head Lamps
Auto Light Control
Rear Combination Lamps
Fog Lamp (Front / Rear)
Position Lamps
Daytime Running Light (DRL)
Outside Mirror
(Electric Adjustable /
Folding /
Side Repeater Lamp)
Roof Rack
Rear Spoiler with HMSL
High Mounted Stop Lamp
(HMSL)
Radiator Grille
Bumper Molding
Outside Handle
Door Garnish
Beltline
G GL GLS
Halogen LED
●
Bulb LED
- / - LED / Bulb
Bulb LED
- LED
● / Manual / ● ● / Electric / ●
●
●
Bulb
Black & Silver Paint Chrome Coating
Bright Colour Chrome
Body Colour Chrome Coating
Black Paint Silver Paint
Black Paint Chrome Coating
Interior
table fix area
Cluster
- Supervision with 4.2" TFT
LCD + Rheostat
Power Sunroof
- Single Tilting & Sliding
Upholstery
SteeringWheel & TGS Knob
Parking Brake
- Hand Parking
Air Conditioning
(Front / Rear)
Mood Lamp
Window Control
G GL GLS
●
- ●
Cloth & Artificial Leather Artificial Leather
PU Leather
●
Manual / ● Auto / ●
- ●
Power Power (Driver : Auto Up/Down & Safety)
Multimedia
table fix area
Infotainment System
Speaker Brand - BOSE
Tweeter
Tweeter + External Amp
+ Center (Front)
Audio Remote Control
Bluetooth w/
Voice Recognition
G GL GLS
8" Display 10.25" AVNT
- ●
● -
- ●
●
●
Convenience
table fix area
Key Type
Drive Mode Select
Cruise Control
Tailgate Type
Wireless Phone Charger
Rain Sensor
Rear Door Curtain (Manual)
Mud Guard
G GL GLS
Keyless Entry Smartkey with Button Start
- ●
- ●
Lift Up
- ●
- ●
- ●
●
Safety
table fix area
Driver's & Passenger's
Airbags
Front Thorax
+ Curtain Airbags
Child Anchor
Anti-lock Brake System (ABS)
Electronic Stablility Control (ESC)
Down-Hill Brake Control
(DBC)
Hill-start Assist Control
(HAC)
Manual Speed Limit Assist
(MSLA)
Parking Distance Warning
Rear View Monitor
Immobilizer
G GL GLS
●
- ●
●
●
●
●
●
- ●
Rear Front & Rear
w/o Switch w/ Switch
●

Wheel

Next

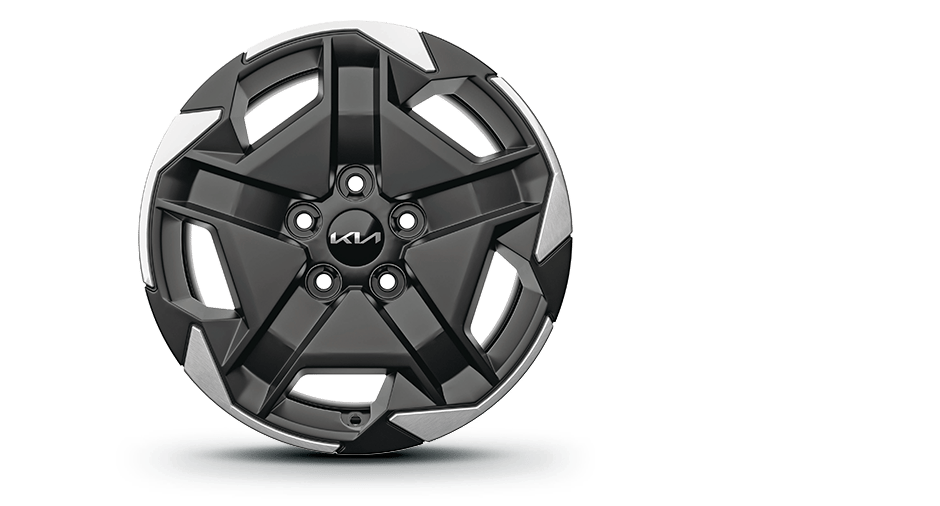

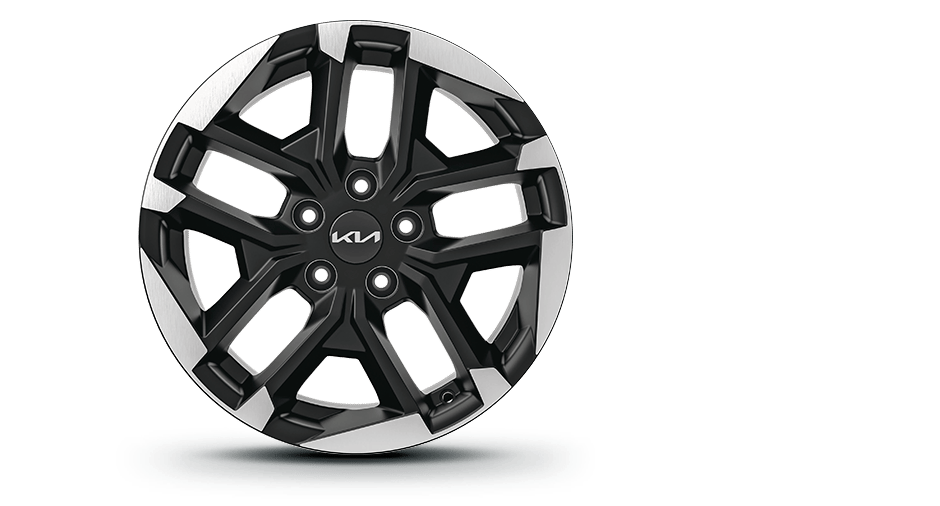

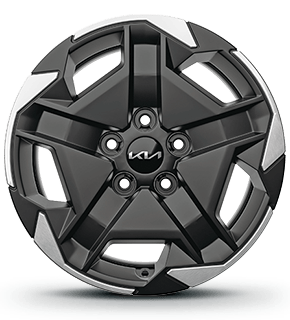

  • 16” Dual tone crystal cut
    alloy wheel

    16” Dual tone crystal cut </br>alloy wheel

  • 16” Steel wheel with full size wheel cover

    16” Steel wheel with full size wheel cover
Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
