Specification

Dimensions

Next
  • ev5-GT-Line-25my-dimensions-front-w ev5-25my-dimensions-front-t ev5-25my-dimensions-front-m
  • ev5-GT-Line-25my_dimensions-back-w ev5-25my_dimensions-back-t ev5-25my_dimensions-back-m
  • ev5-GT-Line-25my-dimensions-side-w ev5-25my-dimensions-side-t ev5-25my-dimensions-side-m
Prev

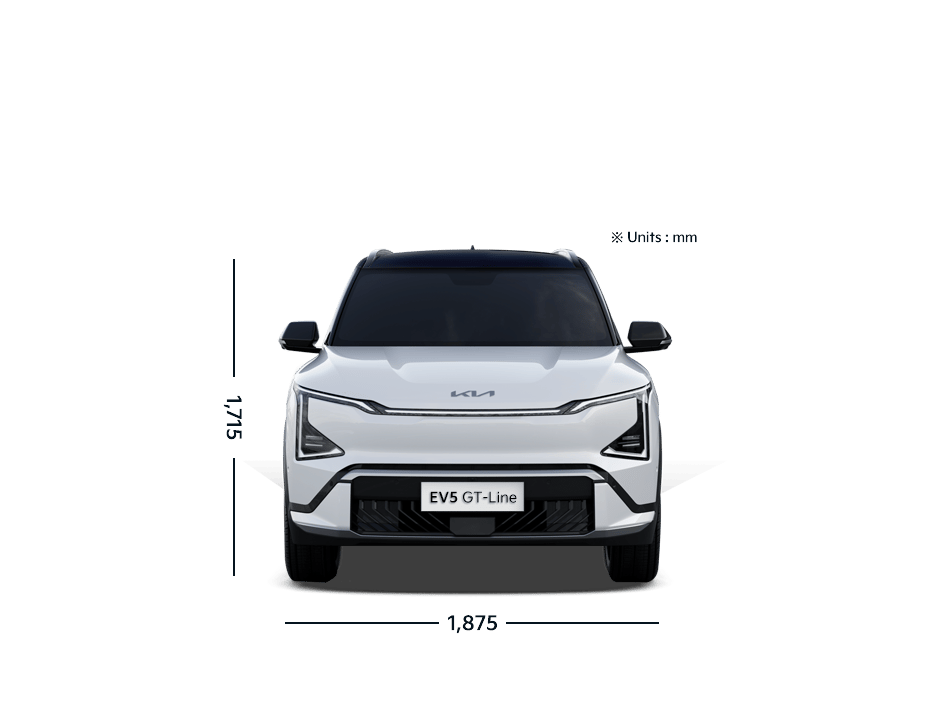

Dimensions (mm)
table fix area
Overall Length (mm)
Overall Width (mm)
Overall Height (mm)
Wheelbase (mm)
Overhang (mm)
Minimum Ground Clearance (mm)
Curb Weight (kg)
Light Air Earth Long Range Earth Exclusive AWD GT-Line AWD
4,615 4,615 4,615 4,615 4,615
1,875 1,875 1,875 1,875 1,875
1,715 1,715 1,715 1,715 1,715
2,750 2,750 2,750 2,750 2,750
910 / 955 910 / 955 910 / 955 910 / 955 910 / 955
175 175 166 166 166
1,948 1,958 2,142 2,234 2,267
Powertrain
table fix area
Motor Type
Electric Motor (Front) Max Power (PS/kW)
Electric Motor (Front) Max Torque (Nm)
Electric Motor (Rear) Max Power (PS/kW)
Electric Motor (Rear) Max Torque (Nm)
Electric Motor (Total) Max Power (PS/kW)
Electric Motor (Total) Max Torque (Nm)
Max Speed (KM/H)*
Accerelation 0-100 KM/H (seconds)*
Light Air Earth Long Range Earth Exclusive AWD GT-Line AWD
Permanent Magnet Synchronous Motor
217 / 160 217 / 160 217 / 160 217 / 160 217 / 160
310 310 310 310 310
- - - 100 / 74 100 / 74
- - - 170 170
217 / 160 217 / 160 217 / 160 308 / 230 308 / 230
310 310 310 480 480
185 185 185 185 185
8.5 8.5 8.9 6.1 6.3
High-voltage Battery
table fix area
Hybrid Battery System Type
Hybrid Battery Capacity (kWh)
AC / DC Charge port type
On Board Charger (AC) maximum capacity
On Board Charger (DC) maximum capacity
Charging duration from 10% to 100% with AC EVSE**
Charging duration from 10% to 80% with DC EVSE**
Electric Driving Range NEDC standard (KM)*
Electric Driving Range WLTP standard (KM)*
Vehicle-to-Load (V2L)
Light Air Earth Long Range Earth Exclusive AWD GT-Line AWD
Lithium-Ion Battery (LFP)
64.2 64.2 88.1 88.1 88.1
Type 2 / CCS Type 2
7 kW Single-phase 7 kW Single-phase / 11 kW Three-phase
102 kW 141 kW
9 hours 43 minutes 8 hours 10 minutes
36 minutes 38 minutes
490 490 665 620 555
400 400 540 500 475
● ● ● ● ●
  • * Actual Driving Range, Accerelation and Max Speed depend on individual's driving characteristic, driving route, environment, number of passenger, loading weight and other factors
  • ** Actual Charging duration depend on electric charger load, temperature during charge, operating performance of charging station and cable, operating performance of battery and other factors
Chassis
table fix area
Drive system
Front / Rear brake system
Wheel Type
Tyre size
Spare Wheel and Tire
Light Air Earth Long Range Earth Exclusive AWD GT-Line AWD
2 Wheels FWD 2 Wheels FWD 2 Wheels FWD 4 Wheels AWD 4 Wheels AWD
Ventilated Disc
Ventilated Disc
18" Alloy 18" Alloy 19" Alloy 19" Alloy 20" Alloy
225/60 R18 225/60 R18 235/55 R19 235/55 R19 255/45 R20
Temporary Mobility Kit
Exterior
table fix area
Small Cube Projection LED Headlamps (3-spot)
Auto Light function
Day Time Running Light
LED Front Center Light
LED Rear Combination Lamp
Sequential LED Turn Lights (Front and Rear)
Rear Spoiler with stop lamp
Roof rack
Panoramic Sunroof
Automatic Wiper System (Rain Sensor)
Electric adjustment and folding outside mirrors
Auto Up&Down power windows with Jam protection
Smart key
Automatic Flush door handles
Manual Flush door handles
Glossy Black painted Fender
Matterial Black Fender
GT-Line Exterior Trims
Smart electric trunk lid (automatic opening-closing)
Light Air Earth Long Range Earth Exclusive AWD GT-Line AWD
● ● ● ● ●
● ● ● ● ●
● ● ● ● ●
- - - - ●
● ● ● ● ●
- - - - ●
● ● ● ● ●
● ● ● ● ●
- ● ● ● ●
● ● ● ● ●
● ● ● ● ●
● ● ● ● ●
● ● ● ● ●
- - ● ● ●
● ● - - -
- - ● ● ●
● ● - - -
- - - - ●
- ● ● ● ●
Interior
table fix area
Bio PU Artificial Leather seat
Partial Cloth and Bio PU Artificial Leather seat
Driver Power Seat with Lumbar Stretch Massage function
Driver Power Seat with Memory and Lumbar Stretch Massage function
Driver power Relaxation seat with Massage function, Ventilated and Heated funcation
Front Passenger Power Seat with Lumbar Stretch Massage function
Ventilated and Heated Front Seats
Foldable Table on back of Passenger seat
Center Console Cooling and Heating box (5-55 degrees Celcius)
Multi Table Luggage Board
Digital Supervision Display, 12.3" TFT LCD Display
Head-up Display
Manual tilt and telescopice adjustment Artificial leather wrapped multi-function 4-spoke steering wheel
Manual tilt and telescopice adjustment Artificial leather wrapped multi-function 3-spoke steering wheel
Shift by Wire geat selector with Paddle shifter for Regenerative barking control
Driving mode adjustment switch
Auto dimming rear view mirror
Automatic Climate Control System (2 zones - Front Dual) with A/C vents for 2nd row seats
Sunvisor (Cloth type) with Vanity mirror and illumination lamps
Cabin Ambient Mood lamp
Stainless Steel Accelerator Pedal and Brake Pedal
Light Air Earth Long Range Earth Exclusive AWD GT-Line AWD
- - ● ● ●
● ● - - -
● ● - - -
- - ● - -
- - - ● ●
- - ● ● ●
- - - ● ●
- - - ● ●
- - - ● ●
- - - ● ●
● ● ● ● ●
- - - ● ●
● ● ● ● -
- - - - ●
● ● ● ● ●
● ● ● ● ●
- ● ● ● ●
● ● ● ● ●
● ● ● ● ●
- - ● ● ●
- - - - ●
Infotainment
table fix area
Infotainment : 12.3" TFT LCD display
Wireless phone connection (Bluetooth)
Voice Control (Connect via Android Auto™ / Apple Carplay®)
6 Audio speakers
8 Harman Kardon Audio speakers
USB Charger
Wireless Charger
Fingerprint Authentication System
Light Air Earth Long Range Earth Exclusive AWD GT-Line AWD
● ● ● ● ●
● ● ● ● ●
● ● ● ● ●
● ● ● - -
- - - ● ●
● ● ● ● ●
- ● ● ● ●
- - ● ● ●
Safety
table fix area
Dual front and side airbags
Side Curtain airbags
ABS+EBD brake system with Multi-Collision Brake (MCB)
Electronic Stability Control (ESC) and Trailer Stability Assist (TSA)
Electric Parking Break (EPB) with Auto Brake Hold
Hill-start Assist Control (HAC) and Downhill Brake Control (DBC)
3-point front seat belt ELR adjustable high - low level
2nd and 3rd row seat belts with ELR
Child seat hook (ISOFIX) on 2nd row seats
Child Lock switch (Power)
Rear Seat Alert
Parking Distance Warning (Front, Side and Rear)
Rear View Camera
Surround View Monitor
Light Air Earth Long Range Earth Exclusive AWD GT-Line AWD
● ● ● ● ●
● ● ● ● ●
● ● ● ● ●
● ● ● ● ●
● ● ● ● ●
● ● ● ● ●
● ● ● ● ●
● ● ● ● ●
● ● ● ● ●
- ● ● ● ●
● ● ● ● ●
Front and Rear ● ● ● ●
● - - - -
- ● ● ● ●
- ● ● ● ●
ADAS
table fix area
Smart Cruise Control with Stop & Go
Blind Spot Collision Avoidance Assist
Blind-Spot View Monitor (BVM)
RCCA : Rear Cross Traffic Collision Avoidance
Lane Following Assist and Lane Keeping Assist
Forward Collision Avoidance Assist - Car , Pedestrian and Cyclist with Junction Assist
Safe Exit Assist
Light Air Earth Long Range Earth Exclusive AWD GT-Line AWD
● ● ● ● ●
- ● ● ● ●
- ● ● ● ●
- ● ● ● ●
● ● ● ● ●
● ● ● ● ●
- ● ● ● ●

Wheels

Next

  • 18" Alloy Wheels

    18" Alloy Wheels

  • 19" Alloy Wheels

    19" Alloy Wheels

  • 20" Alloy Wheels

    20" Alloy Wheels
Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
The whole new levels of peace of mind
At speeds of 20 km/h or higher, BCW alerts you if a vehicle enters your blind spot, even when you are in the process of changing lanes. LED warnings flash on the door mirror and an audio warning is emitted when you signal to make a lane change.
