Manual Speed Limit Assist operation
Setting speed limit
-

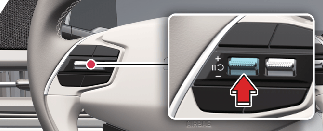

Press and hold Driving Assist () button at the desired speed.
The speed limit indicator () light will illuminate on the cluster.
-
Push the + switch up or - switch down, and release it at the desired speed. Push the + switch up or - switch down and hold it. The speed will increase or decrease to the nearest multiple of ten (multiple of five in mph) at first, and then increase or decrease by 10 km/h (5 mph).
-
The set speed limit (1) will be displayed on the cluster. If you would like to drive over the preset speed limit, depress the accelerator pedal fully.
The set speed limit will blink and chime will sound until you return the vehicle speed within the speed limit.
When the accelerator pedal is not depressed beyond the pressure point, vehicle speed will maintain within the speed limit.
Temporarily pausing Manual Speed Limit Assist
Press the () switch to temporarily pause the set speed limit. The set speed limit will turn off or become gray color but the Speed Limit indicator () will stay on.
Resuming Manual Speed Limit Assist
To resume Manual Speed Limit Assist after the function was paused, operate the +, -, () switch.
If you push the + switch up or - switch down, vehicle speed will be set to the current speed on the cluster.
If you press the () switch, vehicle speed will resume to the preset speed.
Turning off Manual Speed Limit Assist
Press the Driving Assist () button to turn Manual Speed Limit Assist off. The Speed Limit indicator () will go off.
Always press the Driving Assist () button to turn Manual Speed Limit Assist off when not in use.
Take the following precautions when using Manual Speed Limit Assist:
-
Always set the vehicle speed to the speed limit in your country.
-
Keep Manual Speed Limit Assist off when the function is not in use, to avoid inadvertently setting a speed. Check that the Speed Limit indicator () is off.
-
Manual Speed Limit Assist does not substitute for proper and safe driving. It is the responsibility of the driver to always drive safely and should always be aware of unexpected and sudden situations from occurring. Pay attention to the road conditions at all times.
The images or colors may be displayed differently depending on the specifications of the instrument cluster or theme.
