EV3 Overview
Design that makes a statement. Technology that changes the game. The pioneering EV3 is charged to bring all this to the compact EV SUV segment. Impactful flagship styling in an ideally sized package. Best-in-class all-electric range. Kia's most sustainable cabin yet. And a host of advanced tech to elevate every aspect of your drive.
VEHICLE WEIGHT AND CAPACITY INFORMATION Download EV3 Specification VEHICLE WEIGHT AND CAPACITY INFORMATION
| Standard Range 58.3 kWh | Long Range 81.4 kWh | |
| Gross vehicle weight (kg) | 2,270 | 2,355 |
| Kerb weight (kg) | 1,800 | 1,885 |
| Maximum braked trailer weight (kg) | 500 | 1,000 |
| Maximum tow ball weight (kg) | 100 | |
| Maximum Roof Load Capacity | 80 | |
| Luggage compartment capacity, seats upright, litres | 460l | |
| Minimum turning circle radius (m) | 10.4 | |
| Luggage compartment capacity, front | 25l | |
19'' Alloy Wheels
Available on GT-Line & GT-Line S only
Remote Smart Park Assist
Available on GT-Line S only
12.3” Driver Display Screen
Digital Key
Available on GT-Line & GT-Line S only
DRIVE TRAIN Download EV3 Specification DRIVE TRAIN
| Standard Range 58.3 kWh | Long Range 81.4 kWh | |
| Max. power, bhp at rpm | 201 | 201 |
| Max. torque, Nm at rpm | 283 / ~5,000 | 283 / ~5,000 |
| 1 Speed Automatic Transmission | ✓ | ✓ |
CHARGING Download EV3 Specification CHARGING
| Standard Range 58.3 kWh | Long Range 81.4 kWh | |||
| AC Charge Time 230V 12A (10-100%) | 23h 10m | 32h 10m | ||
| AC Charge Time 230V 16A(10-100%) | 5h 20m | 7h 15m | ||
| DC Charge Time (10-80%)- 50kWh | 55m | 79m | ||
| DC Charge Time (10-80%)- 150kWh | 29m | 31m |
WLTP PURE ELECTRIC ENERGY CONSUMPTION & RANGE Download EV3 Specification WLTP PURE ELECTRIC ENERGY CONSUMPTION & RANGE
| Standard Range 58.3 kWh | Long Range 81.4 kWh | ||
17" Wheel |
Max Speed (mph) | 105 | |
| Acceleration 0-62 mph (seconds) | 7.5 | 7.7 | |
| Electric Energy Consumption (Wh/km) - City | TBC | ||
| Electric Energy Consumption (Wh/km) - Combined | 149 | ||
| Range (mi) - City | 362 | 479 | |
| Range (mi) - Combined | 270 | 375 | |
| Carbon Dioxide (CO2) Emissions (g/km) | 0 | ||
| Noise Level Moving (dB) | 67 | ||
19" Wheel |
Max Speed (mph) | - | 105 |
| Acceleration 0-62 mph (seconds) | - | 7.9 | |
| Electric Energy Consumption (Wh/km) - City | - | TBC | |
| Electric Energy Consumption (Wh/km) - Combined | - | 153 | |
| Range (mi) - City | - | 472 | |
| Range (mi) - Combined | - | 367 | |
| Carbon Dioxide (CO2) Emissions (g/km) | - | 0 | |
| Noise Level Moving (dB) | - | 67 | |
19" Wheel |
Max Speed (mph) | - | 105 |
| Acceleration 0-62 mph (seconds) | - | 7.9 | |
| Electric Energy Consumption (Wh/km) - City | - | TBC | |
| Electric Energy Consumption (Wh/km) - Combined | - | 156 | |
| Range (mi) - City | - | 468 | |
| Range (mi) - Combined | - | 362 | |
| Carbon Dioxide (CO2) Emissions (g/km) | - | 0 | |
| Noise Level Moving (dB) | - | 67 | |
19" Wheel |
Max Speed (mph) | - | 105 |
| Acceleration 0-62 mph (seconds) | - | 7.9 | |
| Electric Energy Consumption (Wh/km) - City | - | TBC | |
| Electric Energy Consumption (Wh/km) - Combined | - | 156 | |
| Range (mi) - City | - | 467 | |
| Range (mi) - Combined | - | 361 | |
| Carbon Dioxide (CO2) Emissions (g/km) | - | 0 | |
| Noise Level Moving (dB) | - | 67 | |
BATTERY PACK Download EV3 Specification BATTERY PACK
| Battery Size 58.3 kWh | Battery Size 81.4 kWh | |
| Battery | 58.3 kWh Li-on battery | 81.4 kWh Li-on battery |
| Electric Engine | Permanent Magnet Synchorous Motor (PMSM) | |
| Max Power (kW) | 170 | |
| Number of Cells | 200 | 279 |
| Nominal Voltage (V) | 369 | 343 |
| Capacity (Ah) | 158.2 | 237.3 |
| Battery Weight (kg) | 375 | 470 |
Exterior Features & Lighting
Drawing on Kia’s design philosophy “Opposites United”, the EV3 carves out its own uniquely progressive identity in a compact crossover form. With a future-facing exterior that is both playful and thoughtful. Enveloping an open interior space that emphasises restorative relaxation for every journey.
-
Front Sunroof
-
Fast charging
-
Flush Door Handle
-
Star Map signature lighting concept
EXTERIOR FEATURES & LIGHTING
Standard:
- LED Daytime Running Lights
- LED High Mounted Brake Lights
- LED Rear Lights
- LED Rear Fog Lights
- Electrically Adjustable, Folding & Heated Door Mirrors with LED Indicators
- Body Coloured Bumpers
- Heated Rear Window
- Rain Sensing Front Wipers
- Rear Wiper
- Rear Spoiler
- Standard Paint
EXTERIOR FEATURES & LIGHTING Download EV3 Specification EXTERIOR FEATURES & LIGHTING
| Grade | 'Air' | 'GT-Line' | 'GT-Line S' |
|---|---|---|---|
| Gloss Black Side Sills | - | ✓ | ✓ |
| Black Wheel Arches | ✓ | - | - |
| Gloss Black Wheel Arches | - | ✓ | ✓ |
| Gloss Black Window Surround | ✓ | ✓ | ✓ |
| Gloss Black Roof Rails | ✓ | ✓ | ✓ |
| Privacy Glass (Rear Windows & Tailgate) | - | ✓ | ✓ |
| Front Sunroof with Tilting & Sliding Function | - | - | ✓ |
| Premium Paint | OPT | OPT | OPT |
Interior design & Comfort
The EV3's spacious minimalist cabin is filled with thoughtful design details to maximise your comfort. Like the sliding table console, comfortable and ergonomic seating, and clever storage solutions. Along with customisable ambient lighting that imbues a sense of calm
-
Large Interior displays
-

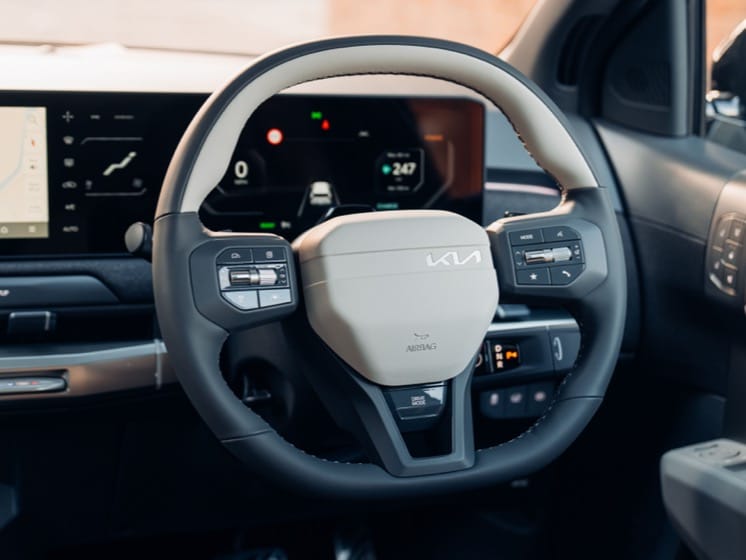

Heated Stearing Wheel
-
Premium Relaxation seats
-
Two-tone Artificial Leather Upholstery
INTERIOR DESIGN & COMFORT
Standard:
- Front Heated Seats
- Artificial Leather Steering Wheel
- Manual Steering Wheel Adjustment
- Heated Steering Wheel
- Automatic Air Conditioning
- Automatic Defog System
- Start/Stop Button with Smart Entry System
- Sunvisors with Vanity Mirror (Driver & Front Passenger)
INTERIOR DESIGN & COMFORT Download EV3 Specification INTERIOR DESIGN & COMFORT
| Grade | 'Air' | 'GT-Line' | 'GT-Line S' |
| Air Styling with Blue Accents | ✓ | - | - |
| GT-Line Interior Styling | - | ✓ | ✓ |
| Grey Cloth Upholstery | ✓ | - | - |
| Two-Tone Artificial Leather Upholstery | - | ✓ | ✓ |
| Outer Rear Heated Seats | - | - | ✓ |
| Front Ventilated Seats | - | - | ✓ |
| Electric Driver's Seat Lumbar Support | - | ✓ | ✓ |
| Electric Front Passenger's Seat Lumbar Support | - | - | ✓ |
| Manual Driver's Seat Adjustment | ✓ | - | - |
| Electric Driver's Seat Adjustment | - | ✓ | - |
| Manual Passenger's Seat Adjustment | ✓ | ✓ | - |
| Electric Driver's Seat Adjustment with Memory Function | - | - | ✓ |
| Electric Front Passenger's Seat Adjustment | - | - | ✓ |
| Front Premium Relaxation Seats | - | - | ✓ |
| Electric One-touch Front Windows | ✓ | ✓ | - |
| Electric One-touch Front & Rear Windows | - | - | ✓ |
| Alloy Pedals | - | ✓ | ✓ |
| Smart Power Tailgate | - | - | ✓ |
| Grey Headlining | ✓ | ✓ | ✓ |
| Sunvisors with Illuminated Vanity Mirror (Driver & Front Passenger) | - | ✓ | ✓ |
Storage, Versatility & Interior Lighting
No matter where you are, or where you’re going, inside the EV3 you’ll find the latest technology and connectivity, combined with a ergonomically luxurious space, that's all about style and comfort.
STORAGE, VERSATILITY & INTERIOR LIGHTING
Standard:
- Frunk
- 60:40 Split Folding Rear Seats

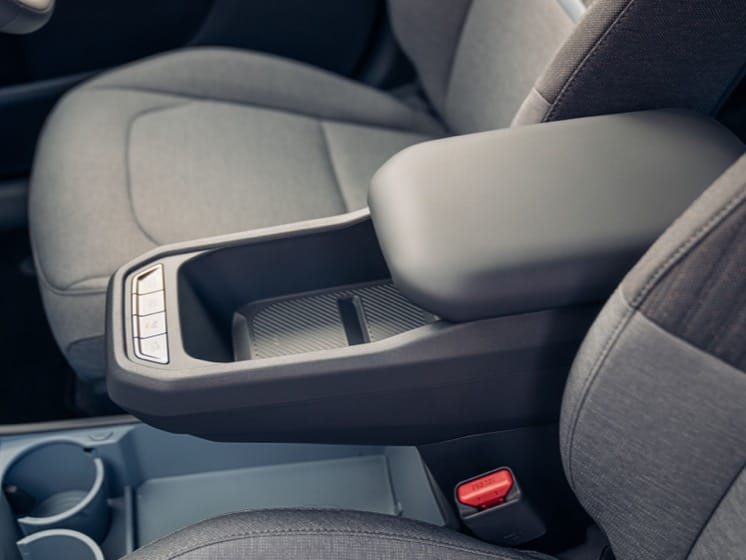

- Centre Console with Underneath Storage
- Rear Centre Armrest with Cupholders
- LED Front Cabin & Rear Lights
- LED Luggage Compartment Lights
- Glovebox
- Luggage Net Hooks
- 12V Front Power Socket
- Luggage Compartment Parcel Shelf
- Luggage Compartment Under Floor Storage
- Luggage Board
- Front & Rear Door Storage
- Tyre Mobility Kit
STORAGE, VERSATILITY & INTERIOR LIGHTING Download EV3 Specification STORAGE, VERSATILITY & INTERIOR LIGHTING
| Grade | 'Air' | 'GT-Line' | 'GT-Line S' |
|---|---|---|---|
| Sliding Console | - | ✓ | ✓ |

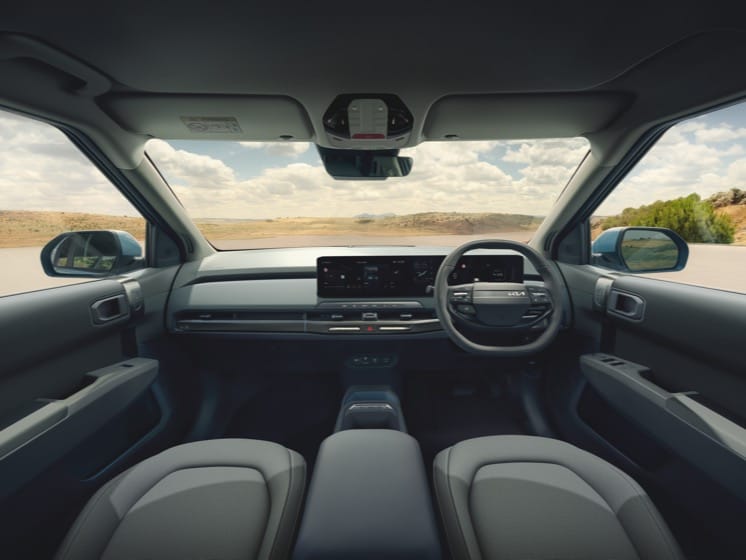

| Customisable Ambient Lighting | - | ✓ | ✓ |
| 1 x 3-Pin Socket | - | - | ✓ |
Vehicle-to-Load (V2L) Capability with Adapter |
- | - | ✓ |
Audio, Communication & Information
The EV3 brings a unique, immersive experience to the compact EV SUV sector – with a host of high-tech features designed to make the most of every moment. Whether you’re looking to relax, work or be entertained while parked and charging, or simply want to enjoy your drive, with flow and enjoyment built into every detail.
-

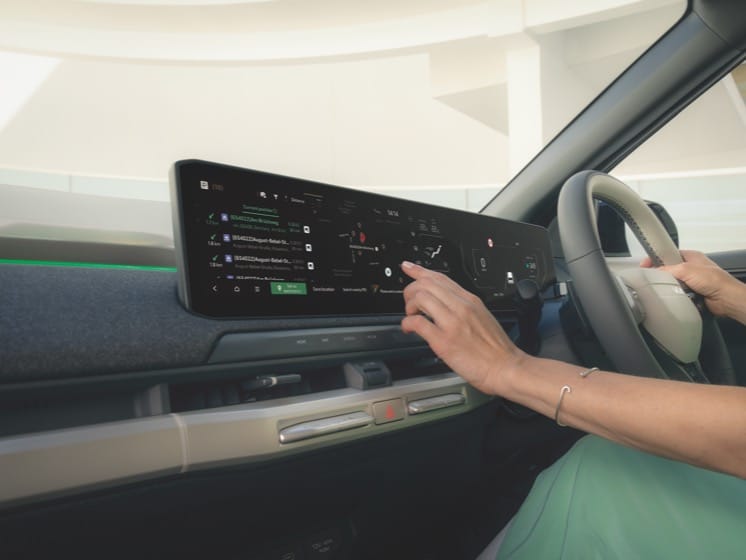

12.3" Touchscreen Navigation with Wireless Apple CarPlay™ & Android Auto™
-
8-Speaker Harman Kardon® Premium Sound System
Available on GT-Line S only
-
USB Charging port
-
Wireless Mobile Phone Charger
AUDIO, COMMUNICATION & INFORMATION
Standard:
- 12.3" Touchscreen Navigation
- Wireless Apple CarPlay™ & Android Auto™**
- Bluetooth® Connection**
- USB-C Port for Media Device Connection
- Front Passenger USB-C Charging Ports x2
- Rear Passenger USB-C Charging Ports x2
- 12.3" Driver Display Screen
- 5.3" Climate Control Screen
- eCall System
- Over-The-Air (OTA) Functionality
- Free 7-Year Kia Connect Services**
AUDIO, COMMUNICATION & INFORMATION Download EV3 Specification AUDIO, COMMUNICATION & INFORMATION
| Grade | 'Air' | 'GT-Line' | 'GT-Line S' |
| 6-Speaker Audio System | ✓ | ✓ | - |
| 8-Speaker Harman Kardon® Premium Sound System | - | - | ✓ |
| Customisable Head-Up Display (HUD) | - | - | ✓ |
| Wireless Mobile Phone Charger | - | ✓ | ✓ |
| Digital Key | - | ✓ | ✓ |
Safety & Driving Dynamics
Innovated for a new standard of protection and assistance: Advanced safety technologies include anti-collision assistants that detect collision risks before they occur. Highway assistants to keep you safe at higher speeds. And parking assistants to make light work of parking
-
Forward Collision Avoidance Assist 2.0
-
Highway Driving Assist 2.0
-
Blindspot Collision Avoidance Assist
-
Navigation-based Smart Cruise Control
ACTIVE SAFETY & DRIVING DYNAMICS
Standard:
- Front & Rear Parking Sensors*
- Reversing Camera System
- Forward Collision-Avoidance Assist 2.0 - City, Pedestrian, Cyclist, Junction Turning & Junction Crossing
- Highway Driving Assist 2.0 with Hands-On Detection
- Lane Keep Assist
- Lane Follow Assist 2.0 with Hands-On Detection
- Smart Cruise Control 2.0 with Stop & Go Functionality
- Intelligent Speed Limit Assist
- Speed Limiter
- Blind-Spot Collision-Avoidance Assist
- Rear-Cross Traffic Collision Avoidance Assist
- Safe Exit Warning
- Driver Attention Warning
- Rear Occupant Alert
- Electronic Parking Brake with Autohold Function
- Regenerative Braking Paddle Shifter with iPedal Functionality
- Drive Mode Select (Normal, Eco, Sport, MyDrive & Snow)
- Anti-Lock Braking System with Emergency Stop Signalling
- Electronic Stability Control
- Hill-Start Assist Control
- Downhill Brake Control
- Multi-Collision Braking System
- Vehicle Stability Management
- Tyre Pressure Monitoring System (TPMS)
ACTIVE SAFETY & DRIVING DYNAMICS Download EV3 Specification ACTIVE SAFETY & DRIVING DYNAMICS
| Grade | 'Air' | 'GT-Line' | 'GT-Line S' |
| Remote Smart Parking Assist 2.0 | - | - | ✓ |
| Blind-Spot View Monitor | - | - | ✓ |
| 360° Surround View Monitor | - | - | ✓ |
| Parking Collison-Avoidance Assist | - | - | ✓ |
| Heat Pump | - | - | OPT |
PASSIVE SAFETY
Standard:
- Height Adjustable Front Seatbelts
- Seatbelt Reminder Warning
- All-Round 3-Point Seatbelts
- All-Round Height Adjustable Headrests
- Front Passenger Airbag Cut-Off Switch
- Front Airbags
- Rear Airbags
- Side Airbags
- Curtain Airbags
- Customisable Automatic Door Locking
- Customisable Automatic Door Unlocking
- ISOFIX Child Seat Top Tethers & Anchor Fixings (Rear)
- Manual Child Lock
SECURITY
Standard:
- Locking Wheel Nuts
- Visible Vehicle Identification Number (VIN)
- Thatcham Category 1 Security Alarm and Immobiliser with Interior Protection
- Smart Key with Motion Sensor
POWERTRAINS Download EV3 Specification POWERTRAINS
| Standard Range 58.3 kWh | Long Range 81.4 kWh | |
| Air | ✓ | ✓ |
| GT-Line | x | ✓ |
| GT-Line S | x | ✓ |
SUSPENSION & TYRES Download EV3 Specification SUSPENSION & TYRES
| Standard Range 58.3 kWh | Long Range 81.4 kWh | |
| Front suspension | MacPherson Strut | |
| Rear suspension | Multi-Link | |
| 17" tyres | 215/60R17 | 215/50R19 |
| 19" tyres | 215/60R17 | 215/50R19 |
VEHICLE INSURANCE Download EV3 Specification VEHICLE INSURANCE
| Standard Range 58.3 kWh | Long Range 81.4 kWh | |
| Air | 32E | 34E |
| GT-Line | - | 35E |
| GT-Line S | - | 36E |
SERVICE INTERVALS Download EV3 Specification SERVICE INTERVALS
| Standard Range 58.3 kWh | Long Range 81.4 kWh | |
|---|---|---|
Timescale / Mileage |
12 months / 10,000 miles, whichever comes sooner | |
DIMENSIONS Download EV3 Specification DIMENSIONS
| Standard Range 58.3 kWh | Long Range 81.4 kWh | ||
Air |
Length (mm) | 4,300 | |
| Width (mm) | 1,850 | ||
| Height (mm) | 1,560 | ||
GT-Line / S |
Length (mm) | - | 4,310 |
| Width (mm) | - | 1,850 | |
| Height (mm) | - | 1,570 | |
For a greener future with WLTP
Book a test drive with your local Kia dealer.
Book a test drive with your local Kia dealer.
Download a brochure today.
Download a brochure today.
Design and build your perfect Kia.
Design and build your perfect Kia.
Find your nearest Kia Dealership.
Find your nearest Kia Dealership.
Driving Range
The range was determined according to the standardised EU measurement procedure (WLTP). The individual driving style and other factors, such as speed, outside temperature, topography and the use of electricity-consuming devices/units, have an influence on the real-life range and can possibly reduce it.
Maximum charging speed
In order to achieve the maximum charging speed, EV3 must be charged at an 400-volt electric vehicle charger that delivers at least 150kW of electricity. The acceleration time of 7.5 seconds corresponds to the standard range battery. In the case of the long-range battery, the acceleration time will be 7.7 seconds.
The actual charging speed and charging time depend on battery temperature and weather conditions.
Electricity consumption (kWh/100 km) combined from 14.9 to 16.2. CO2-Emission (g/km) combined is 0. Electricity consumption combined: [14.9-16.2] kWh/100 km; CO2-emissions combined: [0] g/km; CO2-class: [5]. The specified consumption and emission values were determined according to the legally prescribed measurement procedures (EU) 2017/1153. The above values have been tested in the Worldwide harmonized Light vehicle Test Procedure (WLTP); however, may not reflect real-world driving conditions. Actual energy consumption during driving may vary.
* Parking Sensors may not match exterior body colour.
** Compatibility and functions may vary due to the model year of mobile device and the version of software installed.
- = unavailable on grade.
✓ = standard on grade.
OPT = optional on grade.
